Valves Engineered in the Flow of Progress.

Transcresent, where Valves are Engineered in the Flow of Progress, represents a commitment to innovation and excellence in the realm of fluid control solutions. With a steadfast dedication to engineering precision and cutting-edge technology, Transcresent Valves Division has established itself as a trailblazer in the industry.

Quality is Our Compass,
Excellence is Our Destination.

Transcresent takes immense pride in its unwavering commitment to quality and excellence. We understand that in the world of industrial solutions, quality isn’t just a standard; it’s an absolute necessity. That’s why, at Transcresent, our dedication to quality is at the core of everything we do.

DI & CI VALVES

STRAINERS

CARBON & ALLOY STEEL VALVES

Valves Engineered in the Flow of Progress.

Transcresent, where Valves are Engineered in the Flow of Progress, represents a commitment to innovation and excellence in the realm of fluid control solutions. With a steadfast dedication to engineering precision and cutting-edge technology, Transcresent Valves Division has established itself as a trailblazer in the industry.

Quality is Our Compass,
Excellence is Our Destination.

Transcresent takes immense pride in its unwavering commitment to quality and excellence. We understand that in the world of industrial solutions, quality isn’t just a standard; it’s an absolute necessity. That’s why, at Transcresent, our dedication to quality is at the core of everything we do.

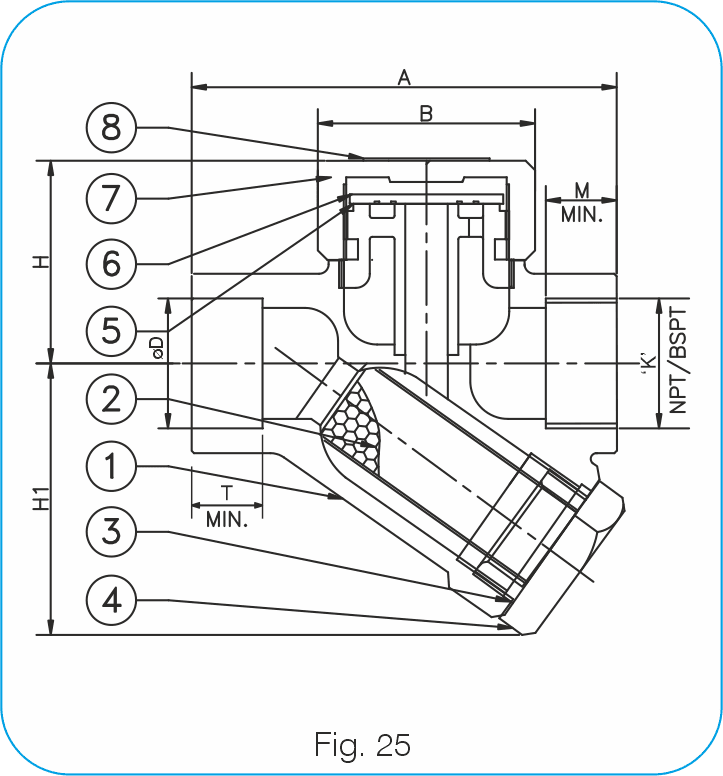

Thermodynamic    Steam Trap
Size : ½ - 24 Inch, Pressure Class:150# ANSI CLASS Up to 2500#
SL
No.
DESCRIPTION MATERIAL
1. BODY ASTM A 105 / F 316
2. SCREEN S. S. 304 (20/40 MESH) / S. S. 316
3. GASKET CNAF / GRAPHITE
4. PLUG S. S. AISI 410 / F316
5. WELDED SEAT FACED WITH 13% Cr. S. S.
6. DISC S. S. AISI 410 (HARDENED) / F 316
7. BODY COVER S. S. AISI 410 / F 316
8. NAME PLATE ALUMINIUM / BRASS / S. S.
DESIGN FEATURES :
