D. I. All Flanged Tee K=14

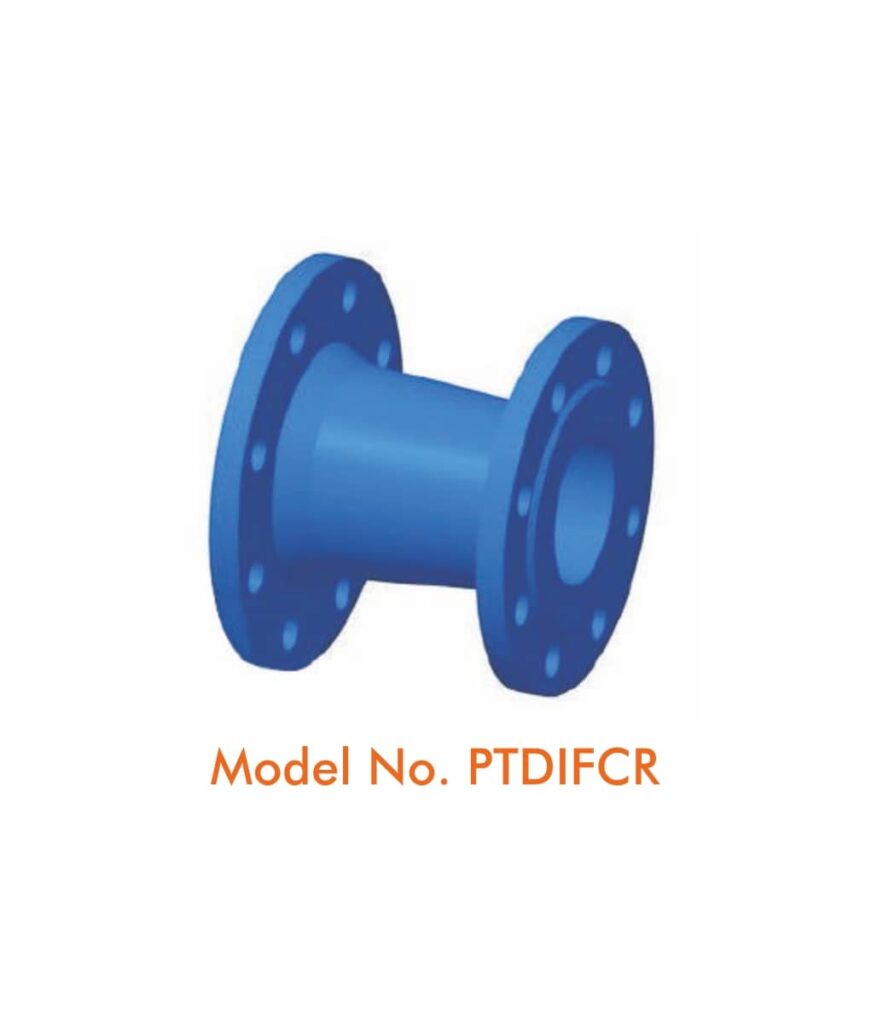

D. I. Double Flanged Concentric Reducer K=12

Design Features
  • Bolts & Nuts: Zinc-Plated hot dip Galvanised or Stainless Steel BS 729:1971, ISO 1461
  • Sleeves: Ductile Iron BS 2789:1985, Grade 420/12
  • Gland: Ductile Iron BS 2789:1985, Grade 420/12
  • Rubber Gasket: SBR, EPDM or other BS 2494:1990, Type W
  • Coating: Fusion Bonded Epoxy or Wet Epoxy Minimum 250 micrones Thick
Design Features
Material Specification
Tensile Strength (Min)420n/Nm²
Elongation (Min)5%
Brinell HardnessMax 250HB
Design Features
Hydrostatic Test Pressure
Normal Diameter (mm)Min. Test Press (Bar)
50 to 30025
350 to 60016
700 to 120010
Design Features
Thickness of Cement Mortar Lining
Normal Size DN Thickness (mm)
Nominal ValueTolerance
50 to 3004-1.5
350 to 6005-2
700 to 12006-2.5
